BEAMGRID is a JUCE-based VST3 / AU spectrum analyzer with a fully black UI, teal accents, and a configurable display. For more information about the JUCE C++ framework, see: https://juce.com/

Screenshots

Features

• Three display modes (MODE knob):
  • BARS - classic log-spaced spectrum bars with peak-hold caps.

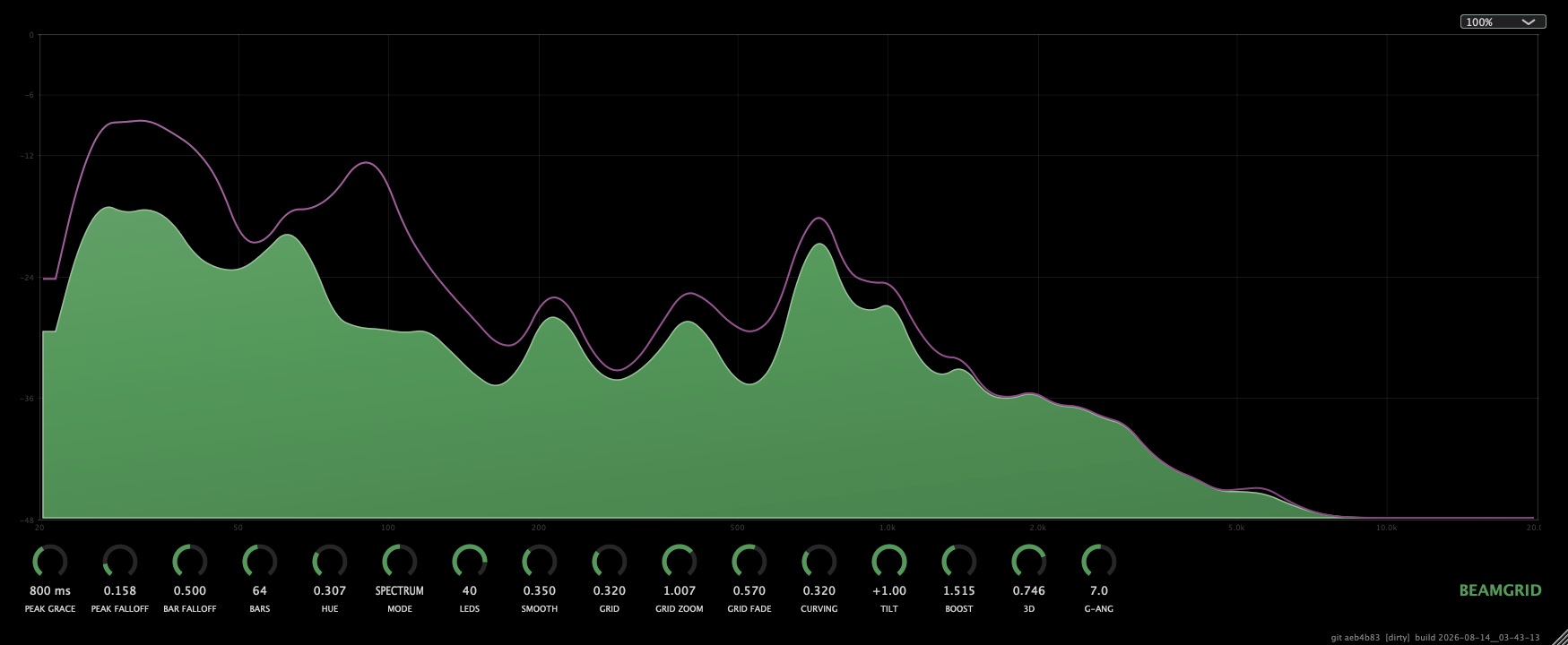

  • SPECTRUM - a smooth (quadratic-spline) waveform trace of the spectrum, with a matching smooth peak-hold wave. Use the SMOOTH knob to go from raw/edgy to heavily smoothed.

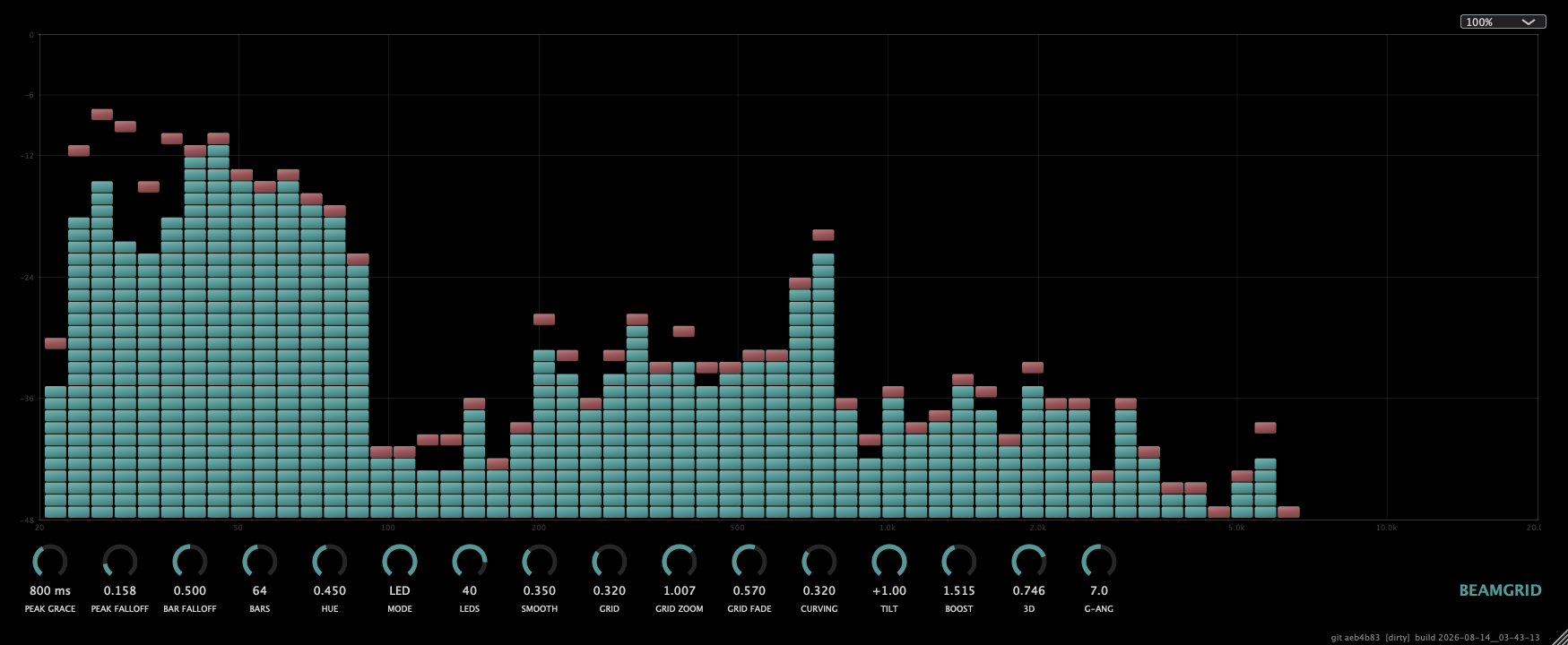

  • LED - an LED-meter style view (LEDS knob sets LEDs per bar).
• Frequency range fixed to 20 Hz – 20 kHz.
• HUE knob rotates the hue of every UI accent (knob arcs, peaks, title) without altering the underlying data.
• UI scaling dropdown (75% – 300%) in the top-right.
• Per-project size & scale persistence (stored in the plugin state).

Parameters

Knob	Range	Description
PEAK GRACE	0 – 2000 ms	Grace period before a peak-hold marker decays
PEAK FALLOFF	0 – 1	Peak-hold decay rate
BAR FALLOFF	0 – 1	Spectrum bar release speed
BARS	8 - 128	Number of spectrum bands (snaps)
HUE	0 – 1	Rotates the UI accent hue (0.5 = no change)
MODE	1 / 2 / 3	BARS / SPECTRUM / LED
LEDS	4 – 48	LEDs per bar in LED mode
SMOOTH	0 – 1	Waveform smoothing amount in SPECTRUM mode
GRID	0 – 1	Grid (frequency/level) visibility / brightness
ZOOM	98.0% – 102.0%	Grid zoom about the plot centre
GRID FADE	0 – 1	Fades inner grid lines; outer border stays
CURVING	0 – 1	LED corner radius (0 = square, 1 = rounded)
TILT	-1 – 1	Spectral tilt: + boosts highs / cuts lows, - does the reverse (0 = flat)
BOOST	0.75 – 2.5	Global display level multiplier (1.0 = unity)
3D	0 – 1	Pseudo-3D bevel/shading on bars, LEDs, peaks and curve (0 = flat)
G-ANG	-180 – 180	Gradient angle for the 3D shading (0 = top-lit, +/-90 = side-lit)

Building

Requires CMake (>= 3.22) and a JUCE-supported toolchain (Xcode / clang on macOS, GCC / Clang on Linux, etc.). JUCE is fetched automatically by CMake.

macOS

cmake -B build -G Ninja
cmake --build build --config Release

Linux

Install the JUCE system dependencies, then build:

# Debian / Ubuntu (DEB)
sudo apt-get install -y libasound2-dev libfreetype6-dev libx11-dev \
  libxcomposite-dev libxcursor-dev libxext-dev libxinerama-dev libxrandr-dev

# Fedora (RPM)
sudo dnf install -y alsa-lib-devel freetype-devel libX11-devel \
  libXcomposite-devel libXcursor-devel libXext-devel libXinerama-devel libXrandr-devel

# Arch Linux / Artix
sudo pacman -S alsa-lib freetype2 libx11 libxcomposite libxcursor \
  libxext libxinerama libxrandr

Note on gtk/gtk.h / fatal error: gtk/gtk.h: No such file or directory

This should not be required anymore since we dropped JUCE_WEB_BROWSER already. If you really happen to need that, try:

# Debian / Ubuntu
sudo apt-get install -y libgtk-3-dev libwebkit2gtk-4.1-dev
# Fedora
sudo dnf install -y gtk3-devel webkit2gtk3-devel
# Arch
sudo pacman -S gtk3 webkit2gtk-4.1

Build BEAMGRID:

cmake -B build -G Ninja
cmake --build build --config Release

The built plugins are installed to your system plugin folders:

• build/BEAMGRID_artefacts/Release/VST3/BEAMGRID.vst3
• build/BEAMGRID_artefacts/Release/AU/BEAMGRID.component (macOS only)

Then rescan plugins in your DAW. BEAMGRID should show up.

Windows

It might work on Windows, too, but I have not tested that, and I have zero intentions to do so. Good luck, nevertheless.

Project layout

Source/
  PluginProcessor.cpp/.h   Audio processor + parameter layout
  PluginEditor.cpp/.h      Editor UI, knobs, layout
  Analyser.h/.cpp          FFT analysis, banding, peak-hold
  AnalyserComponent.h      Drawing (BARS / SPECTRUM / LED)
  BeamgridLookAndFeel.h    Black/teal styling, hue rotation, rotary drawing

License

See the repository license file.
